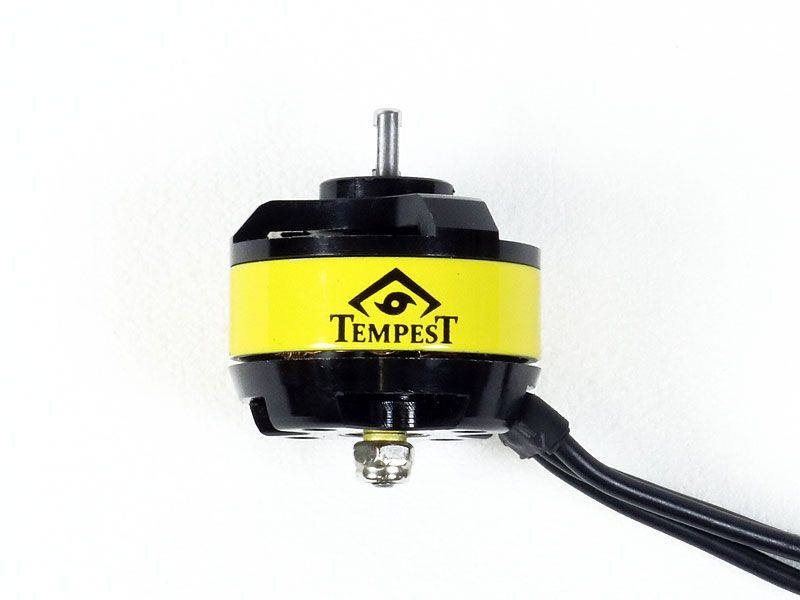

Tempest 1704-2050Kv Brushless Motor
Tempest Motors are designed to provide the optimum blend of Performance, Reliability and Affordability. These motors produce impressive power with rugged durability at a price that makes them one of the best values available in RC Power Systems.
For many years modelers had to choose from two ends of the power system spectrum: Cheap motors made with inferior quality components or top-quality motors, made from the best materials, but with a price tag that was out of reach for many pilots. The Tempest line of Brushless Motors provides the best of both worlds, giving high power output at an affordable price that will not break the bank!
Unlike most other motors available today, that provide virtually no performance information, Tempest motors include full Performance Data charts. These charts use actual testing data, from a motor testing dyno, measured at multiple input voltages using dozens of different propellers, so you know exactly what performance to expect for your model.

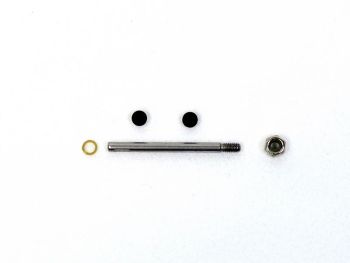

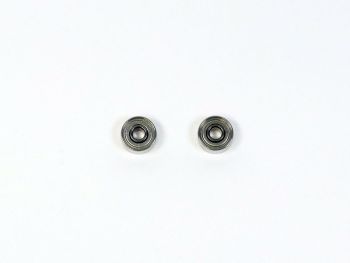

Also available for every Tempest motor is a full range of replacement parts including Prop Adapters, Cross Mounts, Shaft Kits and Bearing Sets.
Included with every Tempest 17mm series motor is a complete accessory kit that includes the following items:

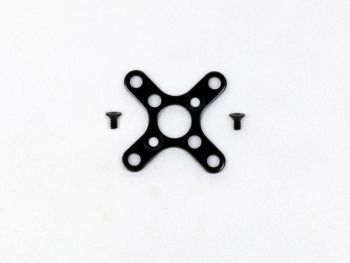

- Aluminum Cross Mount with mounting screws
- Prop-Saver Prop Adapter with 2 O-rings

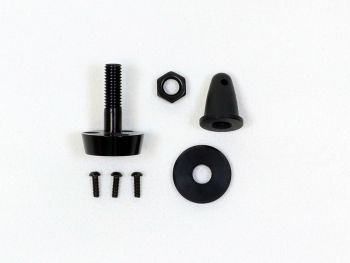

- Threaded Prop Adapter with mounting screws
- Machined Aluminum Prop Washer
- Standard Hex Prop Nut
- Machined Aluminum Spinner Cone Prop Nut
- Hex wrenches to fit the crossmount and prop adapter screws
CLICK HERE for the Performance Data Chart
| Tempest 1704-2050Kv Specifications |
|
|---|---|
| Stator Diameter | 17.0 mm (0.669 in) |
| Stator Thickness | 4.0 mm (0.157 in) |
| Number of Stator Slots | 9 |
| Number of Magnet Poles | 12 |
| Motor Wind | 16 Turn Delta |
| Motor Kv Value | 2050 RPM per Volt |
| No Load Current (Io) | 0.34 Amps @ 10 Volts |
| Motor Resistance (Rm) per Phase | 0.488 Ohms |
| Motor Resistance (Rm) Phase to Phase | 0.325 Ohms |
| Maximum Continuous Current | 7.5 Amps |
| Max Continuous Power (2-cell Li-Po) | 55 Watts |
| Max Continuous Power (3-cell Li-Po) | 85 Watts |
| Motor Weight | 14.6 grams (0.51 oz.) |
| Outside Diameter | 21.0 mm (0.827 in.) |
| Shaft Diameter | 2.00 mm (0.079 in.) |
| Motor Body Length | 15.8 mm (0.622 in.) |
| Overall Shaft Length | 25.5 mm (1.004 in.) |
| Motor Timing | 5-10 degrees or Auto |
| PWM Frequency | 8-16 KHz |
