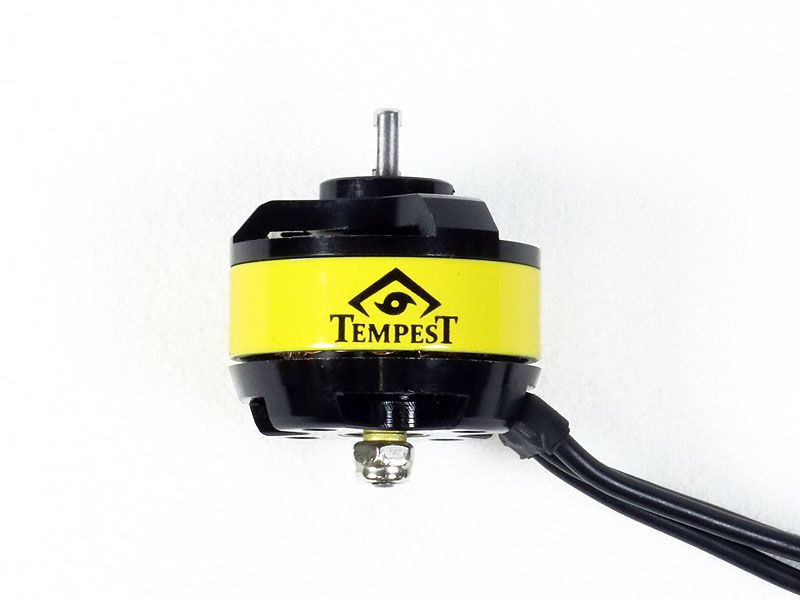

Tempest 1704-2600Kv Brushless Motor

In stock

Tempest Motors are designed to provide the optimum blend of Performance, Reliability and Affordability.  These motors produce impressive power with rugged durability at a price that makes them one of the best values available in RC Power Systems.

More Views


For many years modelers had to choose from two ends of the power system spectrum:  Cheap motors made with inferior quality components or top-quality motors, made from the best materials, but with a price tag that was out of reach for many pilots.  The Tempest line of Brushless Motors provides the best of both worlds, giving high power output at an affordable price that will not break the bank!

Unlike most other motors available today, that provide virtually no performance information, Tempest motors include full Performance Data charts. These charts use actual testing data, from a motor testing dyno, measured at multiple input voltages using dozens of different propellers, so you know exactly what performance to expect for your model.

Also available for every Tempest motor is a full range of replacement parts including Prop Adapters, Cross Mounts, Shaft Kits and Bearing Sets.


Included with every Tempest 17mm series motor is a complete accessory kit that includes the following items:

  • Aluminum Cross Mount with mounting screws
  • Prop-Saver Prop Adapter with 2 O-rings
  • Threaded Prop Adapter with mounting screws
  • Machined Aluminum Prop Washer
  • Standard Hex Prop Nut
  • Machined Aluminum Spinner Cone Prop Nut
  • A set of 3 Female Bullet connectors to match the ones already installed on the motor
  • A set of 3 pieces of black Heat-Shrink Tubing
  • Hex wrenches to fit the crossmount and prop adapter screws

CLICK HERE for the Performance Data Chart




Tempest 1704-2600Kv Specifications
Stator Diameter 17.0 mm (0.669 in)
Stator Thickness 4.0 mm (0.157 in)
Number of Stator Slots 9
Number of Magnet Poles 12
Motor Wind 12 Turn Delta
Motor Kv Value 2600 RPM per Volt
No Load Current (Io) 0.54 Amps @ 10 Volts
Motor Resistance (Rm) per Phase 0.359 Ohms
Motor Resistance (Rm) Phase to Phase 0.239 Ohms
Maximum Continuous Current 9 Amps
Max Continuous Power (2-cell Li-Po) 70 Watts
Max Continuous Power (3-cell Li-Po) 100 Watts
Motor Weight 14.6 grams (0.51 oz.)
Outside Diameter 21.0 mm (0.827 in.)
Shaft Diameter 2.00 mm (0.079 in.)
Motor Body Length 15.8 mm (0.622 in.)
Overall Shaft Length 25.5 mm (1.004 in.)
Motor Timing 5-10 degrees or Auto
PWM Frequency 8-16 KHz
