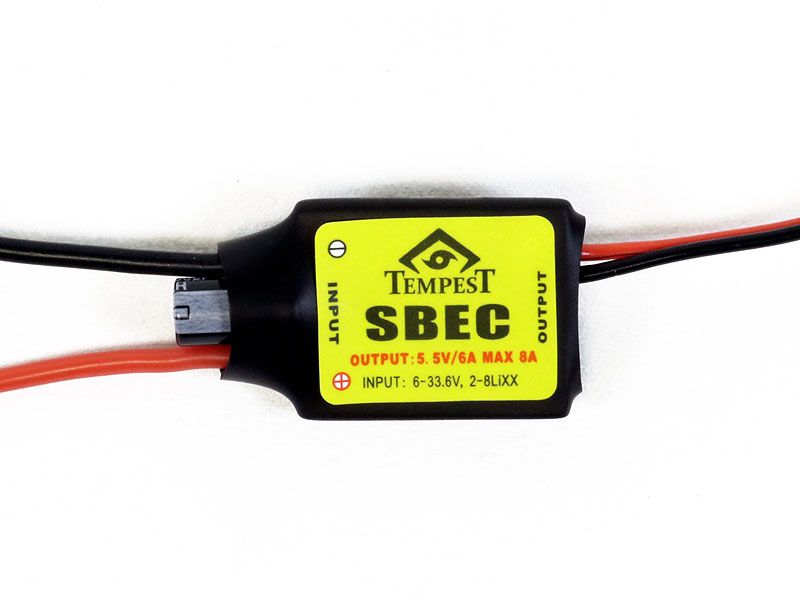

Tempest Switching BEC, 2-8S 6A

$8.99
In stock
SKU
TEM-SBEC-06A
Overview

The Tempest SBEC’s feature high efficiency switching voltage regulators that step the voltage from your motor battery down to a safe level to power your Radio Receiver, Servos or other RC related gear.

More Views

The Tempest SBEC’s feature high efficiency switching voltage regulators that step the voltage from your motor battery down to a safe level to power your Radio Receiver, Servos or other RC related gear.

The Tempest 6-Amp SBEC will accept inputs from 6 to 33.6 volts (2 to 8 LiPo Cells) and provides up to 6 Amps of continuous current at an output of 5.5 Volts.  This unit can also handle current bursts of up to 8 Amps for 2 seconds.

Specifications

Parameter 6A-SBEC
Continuous  Current / Burst Rating (10 Sec) 6A / 8A
Voltage Range 6 - 33.8v
LiPo Cell Range 2-8
Ni-XX Cell Range 6-24
BEC Type Switching
BEC Output 5.5V @ 6A
Weight Grams / Ounces 12,8g / 0.45oz
Dimensions mm (L x W x H) 38mm x 21mm x 10mm
Dimensions Inches (L x W x H) 1.50" x 0.83" x 0.39"
Battery Lead Gauge 18 AWG
Bat. Lead Length mm / inches 90mm / 3.54"
Servo Lead Output Gauge 20 AWG
Servo Lead Output Length mm / inches 310mm / 12.20"
